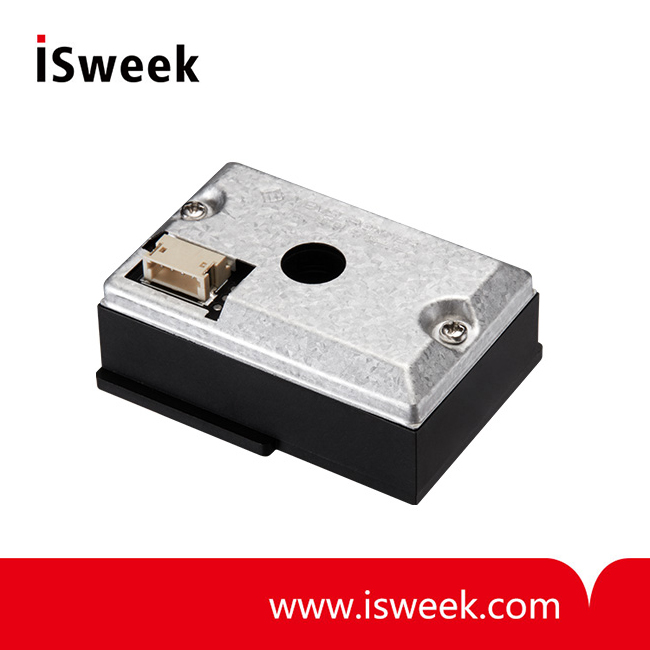

Dust Sensor Module - MPM30 series
MPM30 series dust sensor is a passive infrared dust sensor, which adopts infrared light scattering principle, is equipped with scientific structured design and superior dust compensation algorithm, and has high cost performance.
- Model Number: MPM30 series
- Data Sheet:
- Quantity:
- - +
Product Specification
MPM30 series dust sensor is a passive infrared dust sensor, which adopts infrared light scattering principle, is equipped with scientific structured design and superior dust compensation algorithm, and has high cost performance.
Product parameters:
|
Infrared PM sensor 30 series module |
|
|
Detection particle diameter |
PM0.3~PM10 |
|
Detection concentration range |
0~1000μg/m3 |
|
Detection accuracy |
±15ug/m³or±15% reading (@25±2℃, 50%±10%RH) |
|
Power-on settling time |
≤10 s |
|
Working voltage |
DC 5V±5% , Ripple below 50mV |
|
Working current |
≤15mA |
|
Output mode |
UART/PWM Output mode |
|
Interface |
MPM30-C4:ZH1.5mm-4P socket MPM30-C6:ZH1.5mm-6P socket |
|
Working conditions |
-20℃~+75℃,0~95%RH(non-condensing) |
|
Storage conditions |
-40℃~+85℃,0~95%RH(non-condensing) |
|
Lifespan |
≥8 years |
|
Dimensions |
46 * 34 * 18.15mm (L×W×H) |
